On a printer with a cutter unit installed the cutter cannot be switched off to act as a printer without a cutter. It is not possible to manually tear-off a ticket in a printer with a cutter.
If you want to change the behavior of the cutter unit you can use the following options in the FGL printer driver:
In the advanced printer properties at printer features > output bin you can select:
| Normal mode | print, feed to cutting position and cut (Default) |
| Cut last ticket of job only | Will print multiple tickets of a single print job and cut at the end of the job. Note: The print job send to the printer must contain multiple pages. Multiple, single page jobs will be cut at each ticket. |
| Disable cutter | print, ticket stays at the print head and is not cut Note: not recommended for normal use, only for testing purposes |
On printers without a cutter the same driver setting can be used can be used without any problems although it doesn’t add any functionality to the user.
In the advanced printer properties at printer features > output bin you can select:
| Normal mode | print, feed to tear-off position (Default) |
| Cut last ticket of job only | Will print multiple tickets of a single print job and feed the last ticket to the tear-off position. |
| Disable cutter | print, ticket stays at the print head and cannot be torn off Note: not recommended for normal use, only for testing purposes |
This means that printer with or without a cutter unit can be mixed without the need of changing the print commands.
Windows printer driver setup
To change the setting in the printer driver, go to the printer properties.

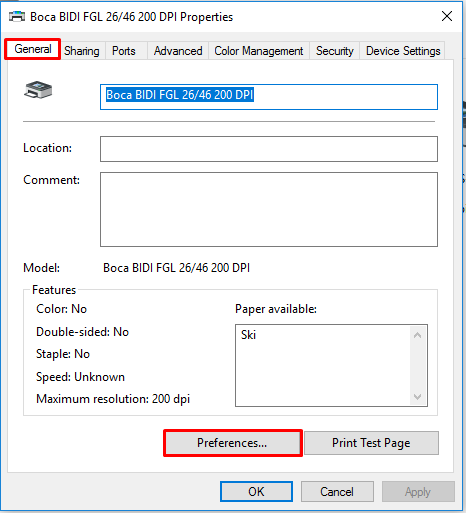

On the “General” tab click on “Preferences…”

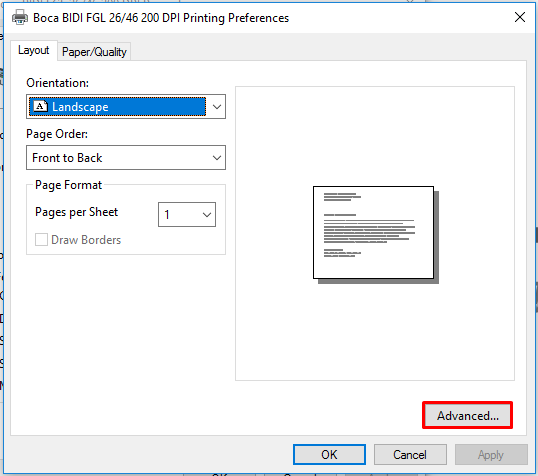

Click on “Advanced…”

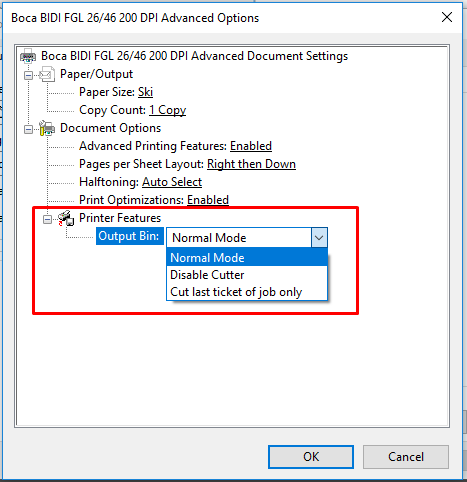

At output bin select the mode you like to use.
Click on OK, Apply and OK.

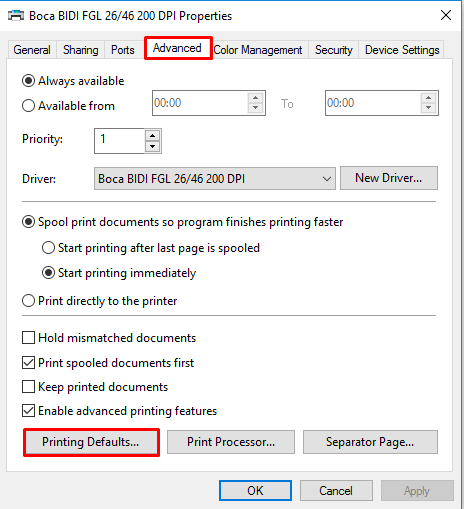

On the “Advanced” tab click on “Printing Defaults…”

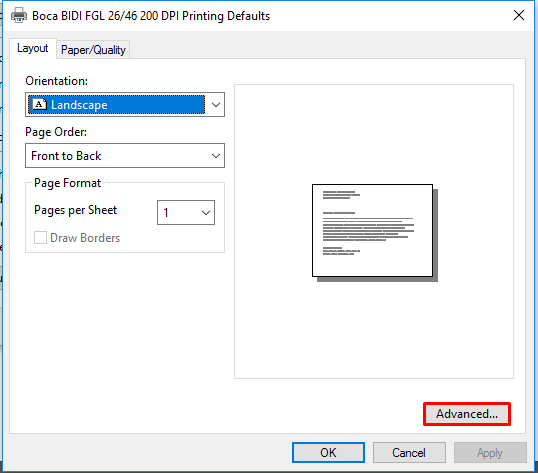

Click on “Advanced…”
At output bin select the mode you like to use.
Click on OK, Apply and OK.
Click on Apply and OK to close the printer properties
